This back pin G4 LED lamp gives a truly outstanding warm white light output – great for bunk side light fixtures.

On board voltage spike and excess current protection.

This 127 Lumen, 10 LED rear pin lamp is suitable for replacing a 10-15 W G4 halogen bulb mounted in a vertical orientation and is ideal for both 12 Volt and 24 Volt systems. It's an excellent fit in most bunk side and other similar shaped reading lamps. It also fits many types of down-lights which are fitted with vertical G4 halogen bulbs.

This 10 SMD lamp compares very well in terms of both colour and exceeds the effective light output of a standard 10W halogen lamp. An on-board Buck-Boost electronic control circuit ensures a constant bright light output if the supply voltage varies.

These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).

Boatlamps also supply a specially protected range of lamps with option of two pin lengths to suit deeper set lamps. These lamps are suitable for all craft, particularly commercial craft, where often the boat's electrical systems can impose high levels of voltage transients.

This lamp is available in Warm White Only and we guarantee the lamp for 2 years.

The light output is UV free and unlike conventional lamps its light output will not fade surfaces, furnishing fabrics and attract less flying insects.

These lamps are not polarity conscious, they are fitted with a 4 independent diode bridge rectifier and can therefore be connected either way without damage.

• Voltage: 10-30V DC
• Input Power: 2.2W
• Input Current: 180 mA
• Lumen Output: 120 Lumens

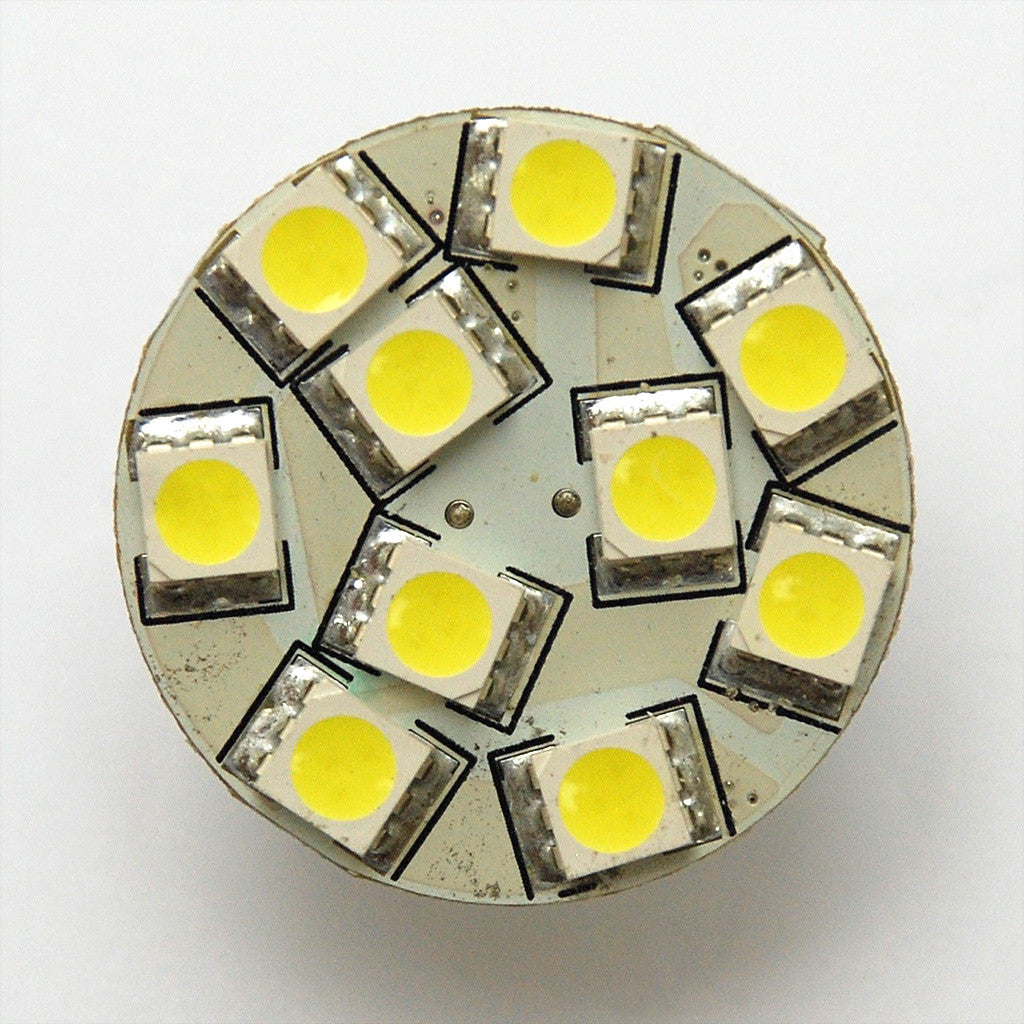

• LED: 10SMD 5050
• Beam Angle: 120°
• Colour Temperature: 2962K WW,
• Dimensions: 30mm diameter x 13m
