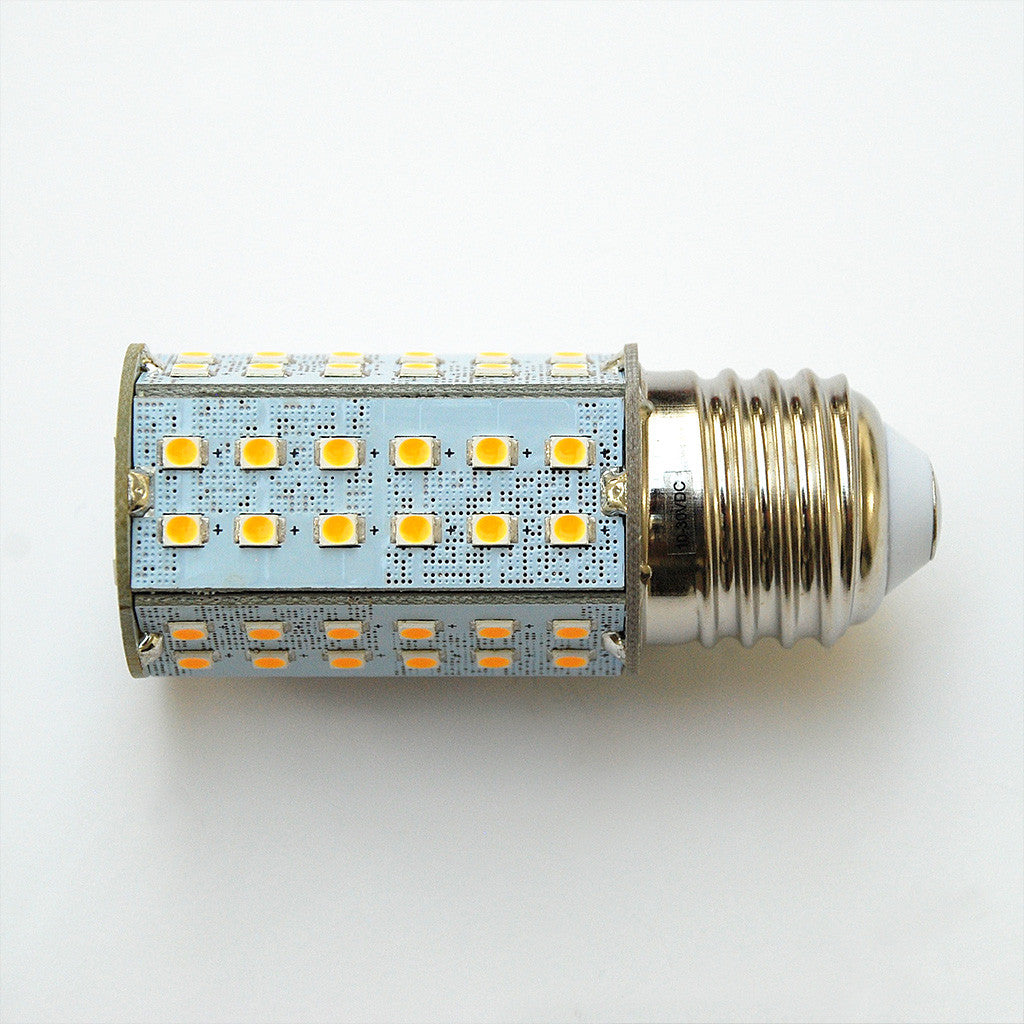

This 66 SMD very high output 2835 LED lamp is our brightest warm white LED lamp available for use in light fixtures.
On board voltage spike and excess current protection.
This E27 base lamp is designed to replace Edison Screw E26/E27 lamps. The light output is outstanding with light colour similar to incandescent light. The lamp has a light output of 594 lumens and the warm white colour (2988K) is very close to the colour of incandescent lamps. It is particularly sympathetic to wooden interior finishes and perfect for side output bulkhead light fixtures designed to take E26/E27 lamps.
An example of a typical bulkhead fixture our lamp works well in
These lamps will reduce current consumption by 80-90% and very much ease the strain on your house battery.
A thermally efficient ventilated PCB acts as highly efficient heat sink allowing maximum light output to be generated by this lamp. This together with a propriety enhanced buck boost constant-current control circuit, enables us to offer a 10-30V DC working range. This makes this lamp perfect for replacing incandescent on both 12V and 24V DC supplies. The lamp has built in self resetting electronic fuse and is equipped with a voltage transient (spike) protection which helps ensure a long service life.
Boatlamps recommend generously lubricating all external lamp-holder contacts with Contralube 770 gel to protect and prevent corrosion of all metal parts.
The light output is UV free and unlike conventional lamps its light output will not fade surfaces, furnishing fabrics and attract less flying insects.
These lamps are not polarity conscious they are fitted with a diode bridge rectifier and can therefore be connected either way without damage.
- Input Voltage: 10-30V DC
- Input Power: 5.9W
- Input current: 491mA @12V
- Light Output: 594 lumens
- LED: 66SMD 2835
- Beam Angle: 360 deg
- Colour Temperature: Warm White, 2966K
- CRI: 80
- Dimensions: Length including base 76mm x Diameter 31mm
- Warranty: 24 months
