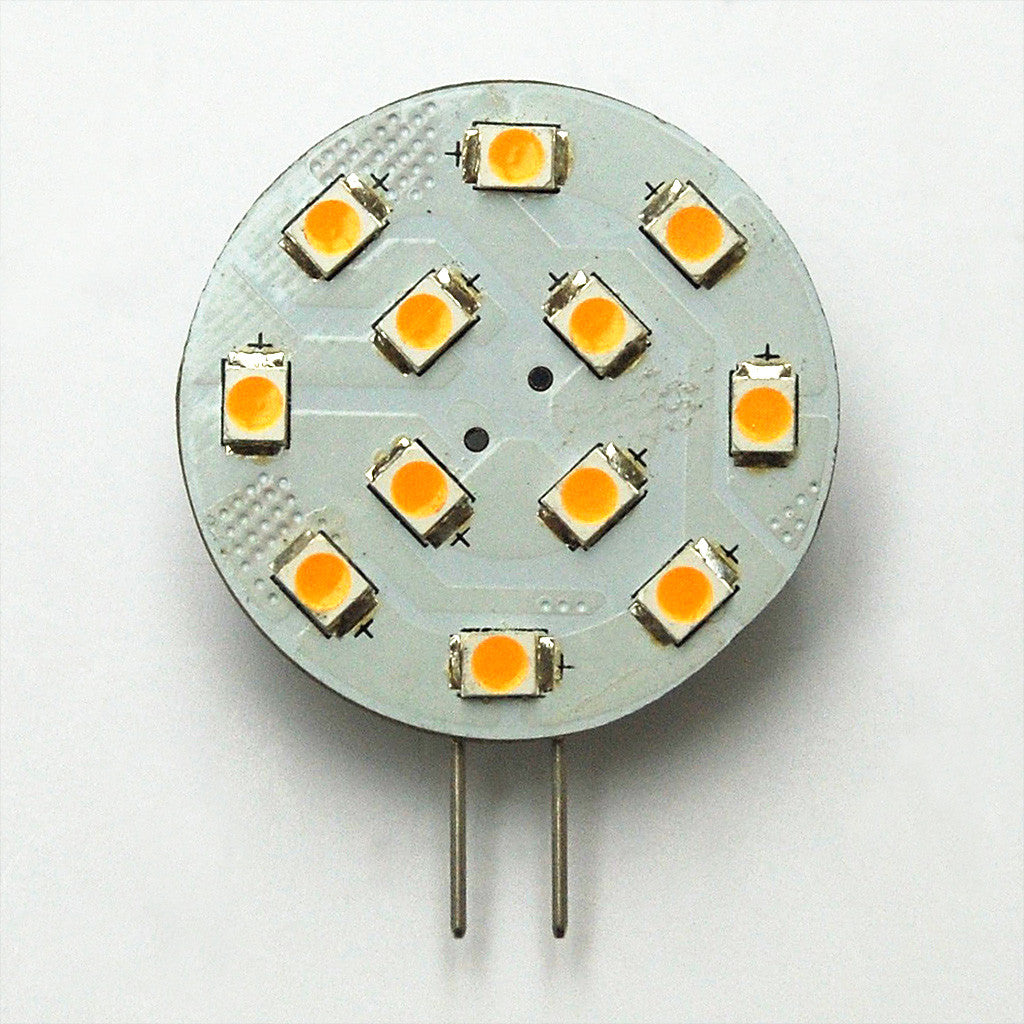

G4 12 SMD 2835 High Output LED Planar Disc Lamp: Side Pin

£10.99

SKU: 2130030-D09

Our brightest 12SMD 2835 side pin lamp is protected against voltage transients (spikes) and excess current.

This compact, planar disc lamp utilised the latest technology. It uses 12 new 2835 LEDs which offer significantly increased light output and reduced power consumption compared to 5050 LEDs and is ideal for use on both 12 Volt and 24 Volt systems.

This 12 SMD LED side pin lamp has an on board electronic fuse (non-linear thermistor) plus transient voltage (spike) protection. This low EMI lamp is an excellent fit in most halogen down-lights which utilise vertical orientated G4 halogen bulbs. It is particularly suitable for use on boats where there is some experience of LED lamp failures.

This very bright lamp compares very well in terms of both colour and effective light output with a 20W halogen lamp. An on-board Buck-Boost electronic constant current control circuit ensures a constant bright light output even when the supply voltage varies. We utilise specially designed PCB layouts which minimise minimise EMI (Electro Magnetic Interference)

The light output is UV free and unlike conventional lamps its light output will not fade surfaces, furnishing fabrics and is less attractive to flying insects.

The warm white output is ideal to sympathetically light your boat’s interior.

These lamps are not polarity conscious, they are fitted with a 4 independent diode bridge rectifier and can therefore be connected either way without damage.

  • Voltage: 10-30V DC
  • Input Current: 133 mA
  • Lumen Output: WW 165 Lumens
  • LED: 12SMD 2835
  • Beam Angle: 120°
  • Colour Temperature: 2692K WW
  • CRI: >80
  • Dimensions: 30mm diameter x 8.5mm
  • Warranty: 24 months
