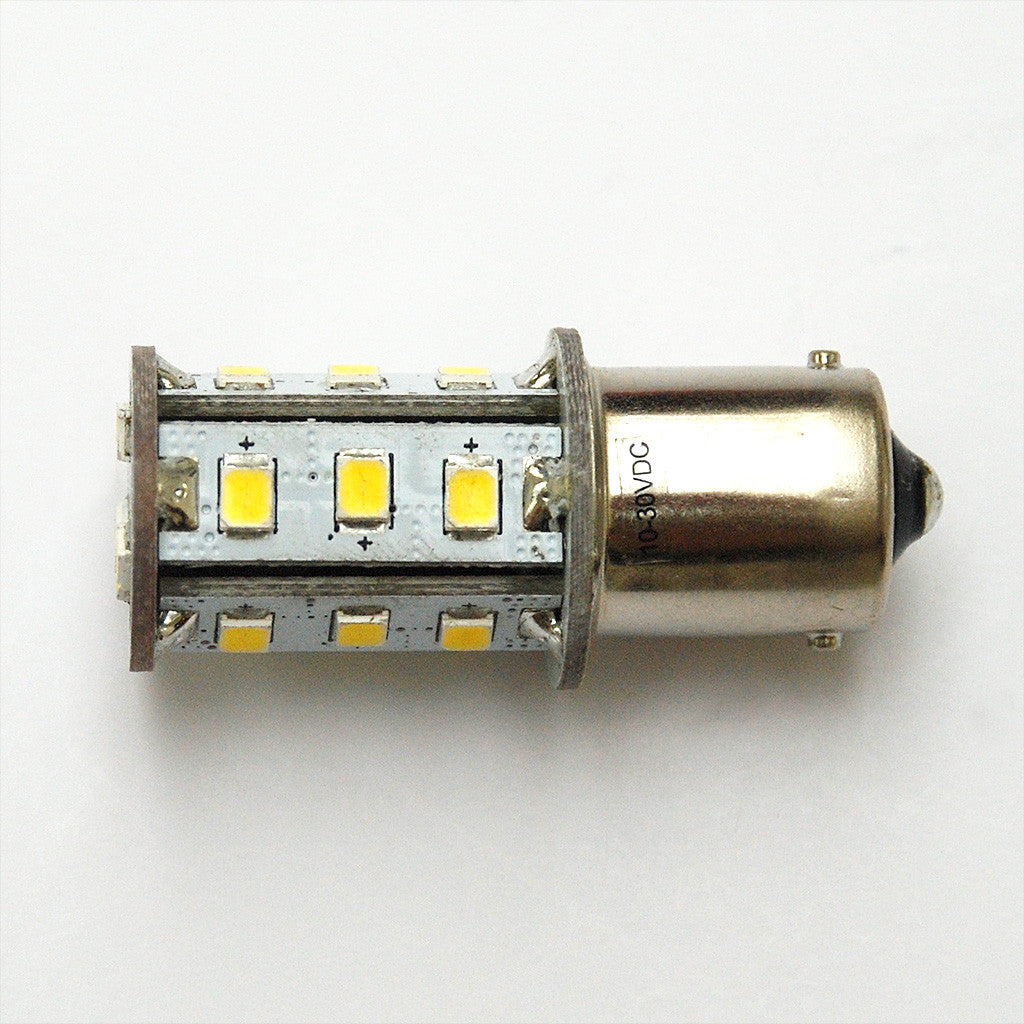

BA15S 18 SMD 2835 High Output Compact LED Lamp

£9.99

SKU: 2130058-L05

This compact, high output, 2835 LED lamp offers a massive 271 lumen output and is eminently suitable for use in many navigation light fixtures.

On board voltage spike and excess current protection.

It is a perfect lamp for the Lalizas anchor light fixture and the small Hella Marine 3562 fixtures that are widely used on ribs and other smaller craft. This LED lamp can also be used for stern, steaming and mast head anchor light elements of tri-colour lights where single contact BA15S lamp holders have been installed. This 18 SMD lamp is suitable for boats up to 20 metres. Do not use cool white lamps behind separate red or green lens or combined bi colour lights as the output colours will not be correct.

For larger vessels and for owners who wish to be seen over greater distance please see our very high output lamp.

These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference). This bulb has our on-board PWM Buck-Boost electronic control circuit which combine with 18 high output SMD LEDs to give consistent light output and a very long service life.

Boatlamps recommend using Contralube 770 on all lamp holder contacts and other connections on your boat. This product will protect against contact corrosion which is the most common reason both LED and traditional incandescent lamps flicker or fail.

These lamps are not polarity conscious as they are fitted with a diode bridge rectifier and can therefore be connected either way without damage.

  • Voltage: 10-30V DC
  • 18SMD 2835 LED
  • Input Power: 2.4W
  • Input Current: 200mA @ 12v
  • Lumen Output: 271 Lm (CW)
  • LED: 18SMD 2835
  • Dimensions: 20mm dia x 46.5mm incl. base
  • Colour Temperature: 6311K CW, 4000K DW
  • Beam Angle: 360 deg
  • Warranty: 24 months

BA15S Base BA15S Side BA15S

Dimensions

Important: In common with other replacement LED lamps on the market, it is not possible to have any sort of marine authority certification for individual replacement bulbs. These LED lamps are easily visible at distances exceeding 3nm in standard fixtures and is one of the brightest replacement LED bulbs available. Given the vast array of navigation light fittings installed on marine vessels, it is the user's decision alone whether to use this product to retrofit any particular light fitting used for navigation purposes.
