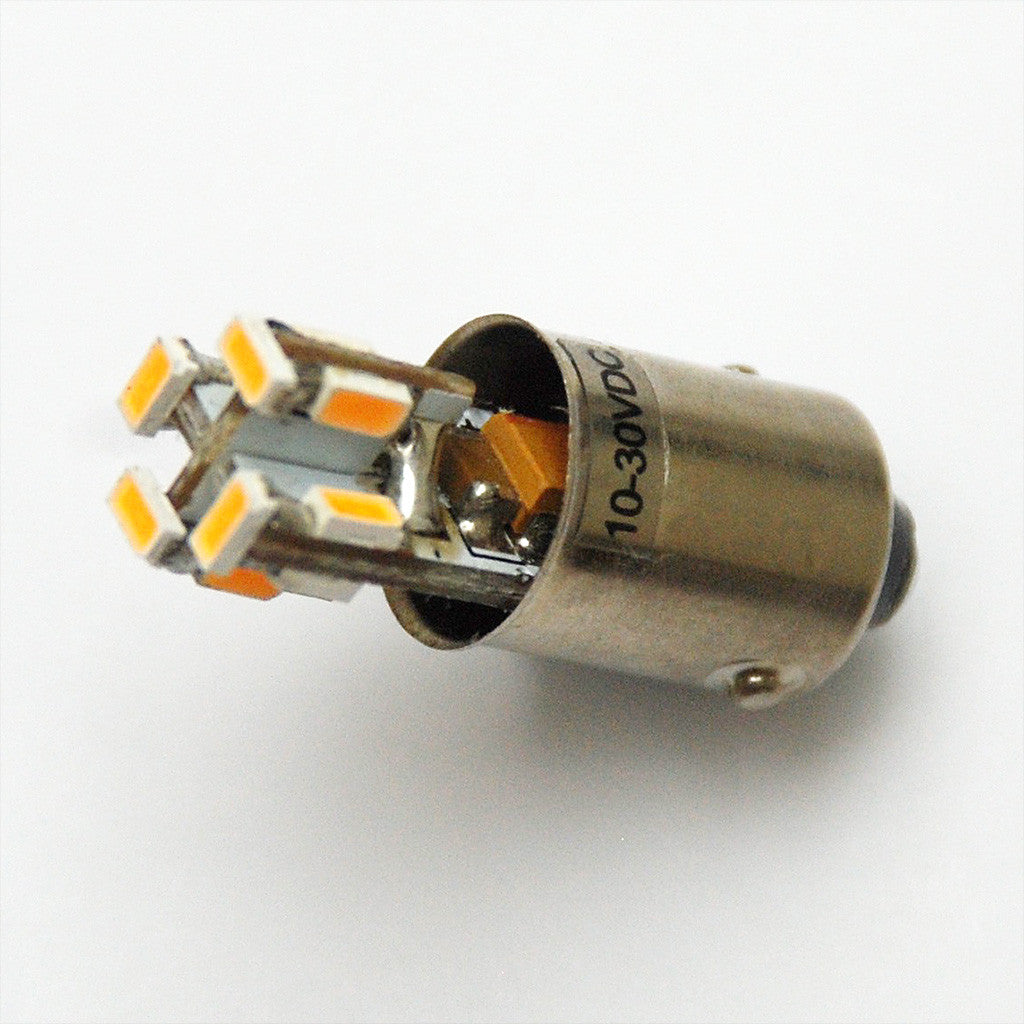

BA9S 12 SMD 3014 LED Replacement Lamp


SKU: 2130278-WE10

Popular for portable anchor lights, chart lights and courtesy lights.

This extremely bright very small bulb is a very popular lamp for replacing BA9S incandescent lamps fitted in tight fixtures and is especially good in chart lights and is ideal for both 12 Volt and 24 Volt systems. Exceptional for its small size this lamp has built in Buck-Boost electronic control circuitry, designed to protect the bulb against damage that can result from excessive voltage variation. Our electronics guarantees just the right amount of current flows through each LED so as to maximise light output whilst enhancing service life.

The bulb features x12 3014 SMD LEDs and puts out excellent light for its size in a 360° pattern and is a perfect fit for anchor lights and courtesy light fixtures that utilise BA9S incandescent bulbs. Warm White is ideal for interiors, Cool White is recommended for use in Anchor Lights as it offers maximum light output.

These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).

This bulb fits and significantly upgrades the light output from the popular Davis Mega-Light. Boatlamps recommend generously lubricating all external lamp-holder contacts with Contralube 770 gel to protect and prevent corrosion of all metal parts.

The light output is UV free and unlike conventional lamps its light output will not fade surfaces, furnishing fabrics and attract less flying insects.

These lamps are not polarity conscious, they are fitted with a diode bridge rectifier and can therefore be connected either way without damage.

  • Voltage: 10-30V DC
  • Power Input: 0.5W
  • Current Input: 40mA @ 12V)
  • Lumen Output: 63 CW 45 WW
  • LED: 12SMD 3014
  • Colour Temp: ~ 6100k CW ~3100K WW
  • Beam Angle: ~360 Deg.
  • Dimensions: 9.0 mm diameter x 25.9 mm including base
  • Warranty: 24 months

Original bulb Our LED replaces this bulb type
