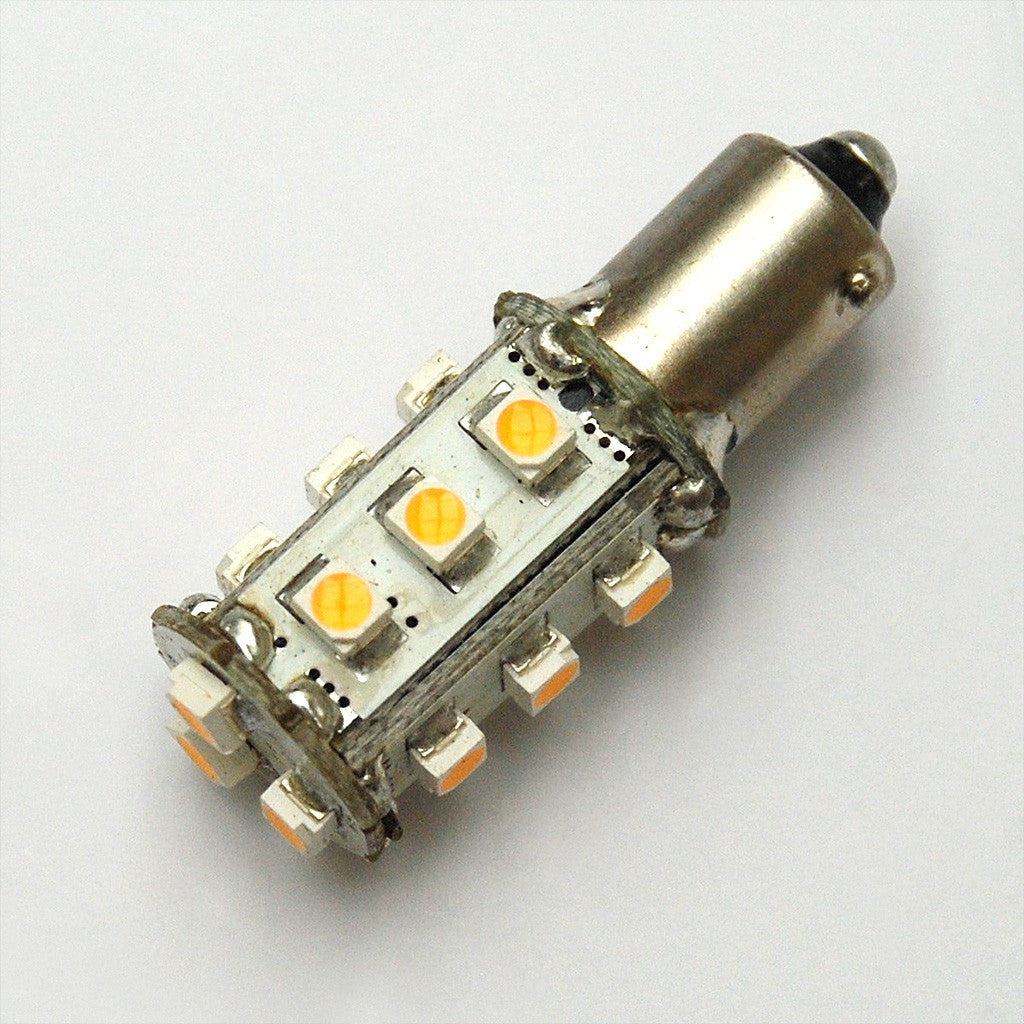

BA9S 15 SMD 3528 LED Bayonet Replacement Bulb


SKU: 2130075-F06

Popular bright LED replacement bulb ideal for anchor lights as well as stern, mast, bi-colour, red and green lights.

On board voltage spike and excess current protection.

This extremely bright LED bulb is very popular for replacing small BA9S incandescent single-contact type bulbs and is ideal for both 12 Volt and 24 Volt systems. The bulb features 15 SMD 3528 LEDs and puts out a massive amount of light for its size in a 360° pattern and is a perfect fit for the AquaSignal Series 20 light fixtures that use BA9S incandescent bulbs.

This bulb fits and significantly upgrades the light output from the popular Davis Mega-Light. Cool White is recommended for use in anchor lights as it offers maximum light output.

This lamp has built in Buck-Boost electronic control circuitry, designed to protect the bulb against damage resulting from excessive voltage variation. It guarantees just the right amount of current flows through each LED so as to maximise light output and enhance service life.

These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).

The light output is UV free and unlike conventional lamps its light output will not fade surfaces, furnishing fabrics and attract less flying insects.

Boatlamps recommend generously lubricating all external lamp-holder contacts with Contralube 770 to protect and prevent corrosion of all metal parts.

  • Voltage: 10-30V DC
  • Input Power: 1.3W
  • Input Current: 108 mA @ 12V
  • Lumen Output: 93 Lumens CW
  • LED: 15SMD 3528
  • CCT/Temperature: ~3100k WW, ~6100k CW
  • Beam Angle: 360°
  • Warranty: 24 months

Original bulb Our LED replaces this bulb type
