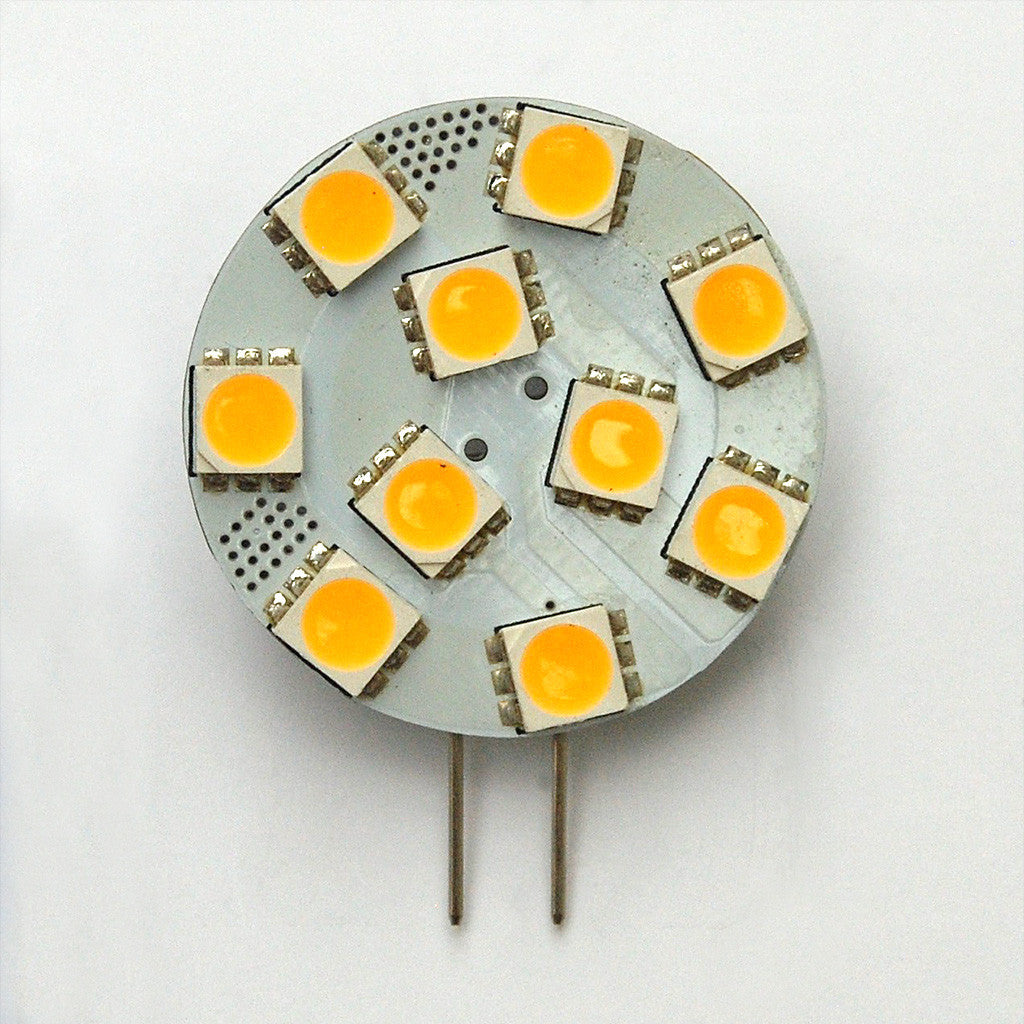

10 SMD LED Lamp with added On-Board Voltage and Current Protection.

This 10 SMD LED side pin lamp has an on board electronic fuse (non-linear thermistor) and transient voltage (spike) protection diode. Great for overhead light fixtures that use 10-15W halogen lamps it fits most down-lights found on marine vessels. This low EMI lamp is an excellent fit in most halogen down-lights which utilise horizontal orientated G4 halogen bulbs. It is particularly suitable for use on boats where there is some experience of LED lamp failures and is ideal for both 12 Volt and 24 Volt systems.

This bright lamp compares very well in terms of both colour and light output with a standard 10W halogen lamp. An on-board Buck-Boost electronic control circuit ensures a constant bright light output when the supply voltage varies and contributes to a long service life. These lamps are designed to minimise EMI, unlike other similar looking lamps sold for non marine use. We utilise specially designed PCB layouts which avoid tracks acting as antenna that radiate EMI (electromagnetic interference).

The light output is UV free and unlike conventional lamps its light output will not fade surfaces, furnishing fabrics and attract less flying insects.

Warm White is recommended for interior use. Red is useful for use in a selected, switched, overhead light to illuminate below at night whilst helping to preserve night vision. The blue option helps make your cockpit or interior look very distinctive.

These lamps are not polarity conscious, they are fitted with a 4 independent diode bridge rectifier and can therefore be connected either way without damage.

• Voltage: 10-30VDC
• Colours: Warm White, Red, Blue
• Input Power: 2.0W
• Input Current: 196mA
• Lumen Output: 120 Lumens
• LED: 10SMD 5050
• Beam Angle: 120°
• Colour Temperature: 3200K WW
• Dimensions: 30mm diameter x 8.5mm
• Warranty: 24 months
